Box Sash Window Diagram

Here is an illustration of both a casement and a box sash window, with the key components highlighted and explained. Parts of a casement window - glossary of terms Fanlight - This is the name given to a smaller opening section found at the top of the window, which is typically rectangular in shape. The 3rd diagram shows a close up of our VPSS draught proofing pile - or 'weatherfin'. We have a range of sizes to suit all gaps, and the correct size is assessed by our Installers on site. A groove is then routed out in the relevant places and the detachable weatherfin pile is fed in to form part of the window.

A box sash window, sometimes referred to as a 'sash and case' window, is a traditional sash window style. One of the key characteristics is the 'box' or 'case' that houses nylon cords, pulleys, and weights to counterbalance the sashes top and bottom, providing a smooth, effortless motion when opening. Sash Horns / Joggles - A shape cut into the extended style of the sash frame. Introduced during the Victorian era when sheets glass was being produced in much larger sizes. Without the support of glazing bars the top sash meeting rail required more strength to stop the mortice joint from breaking out. The style of sash horns can vary between.

Related Posts of Box Sash Window Diagram :

1 Measure the height of your window jamb. Use a tape measure to find the height of your window jamb on the left side, right side, and center. If these three measurements are not the same, use the smallest measurement.

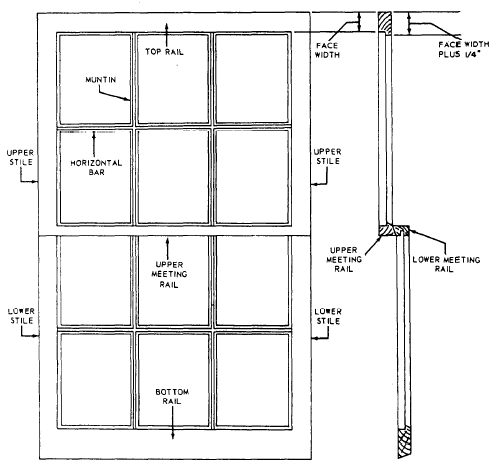

Rail Length = 18" total sash width minus the combined width of the two stiles (2-1/4 x 2 = 4-1/2"), adding the width of the profile twice (1/4" x 2 = 1/2"), and adding the length of the tenon twice (1" +1" = 2"), which equals 16". This leaves a rail with a 1" tenon on each end.

Updated: 10/19/2021 Table of Contents What is a Window Sash? Sash Windows and Other Types of Windows Window Sash Maintenance and Replacement Lesson Summary Frequently Asked Questions.

We offer sash double-hung replacement windows, which is a breeze to install in a replacement application to replace an older sash. It is quick to install because the window frame and trim pieces typically remain in place. System is provided with all the necessary parts and hardware for replacing existing windows while keeping trim and frame intact.

The Original Box Sash Windows Company have been producing and installing beautifully hand-crafted hardwood windows for more than 40 years. We are unique in our industry in offering you a 30-year guarantee. Using sustainable, high quality timber to craft our elegant windows with precision, we know they will last a lifetime..

Mechanism and application Exceptionally wide sash window (approximately two metres or 6.6 feet wide) in a pub in Bromyard, Herefordshire, England Box sash window To facilitate operation, the weight of the glazed panel is usually balanced by a heavy steel, lead, or cast-iron sash weight or counter-weight concealed within the window frame.

Double-hung window diagram. Design Basics. Design Guidelines. Outside Mount Roman Shades. Blinds For Windows. Diy Home Decor. Home Diy. Honeycomb Shades.. Jul 24, 2019 - Explore Top Notch Sash Window Renovati's board "Technical drawings - sash windows", followed by 119 people on Pinterest. See more ideas about sash windows, windows, window.

The sash window box frame is the overall window frame that surrounds the window opening and it incorporates the window sill externally. D | Top, Bottom & Mid-Rail The rails are the horizontal sections of timber that make up each sash frame.

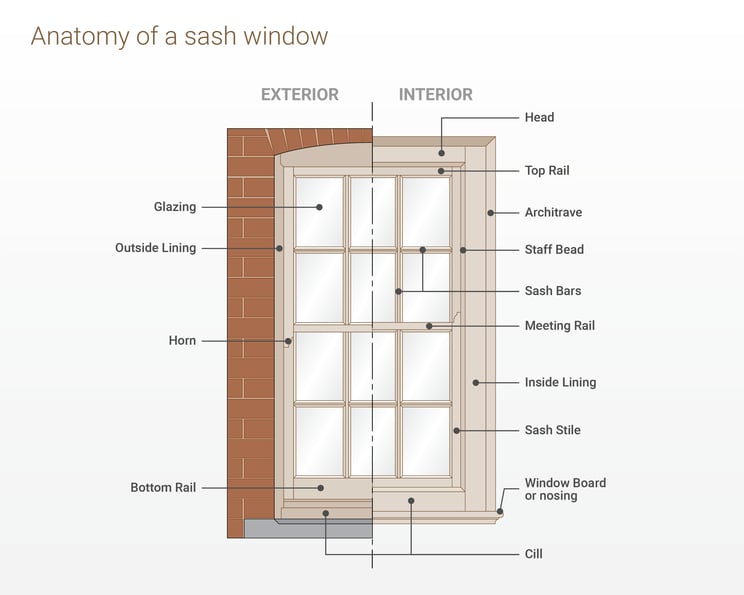

Sash window parts diagram: Architrave - a moulded perimeter trim covering the frame and the wall. Becoming increasingly ornate into the Victorian era. We usually replace the whole architrave section when we repair sash windows.
